  [ ISDB-T ]

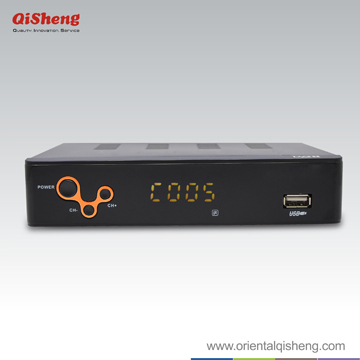

〖Mode_NO〗DVB-2007IS
〖Product detail〗

Feature : Audio Decoding
Supports ISDB-T broadcast, MPEG-2/MPEG-4 AVC/H.264 HD/SD Video, DiVX  Standard: ISO/IEC 13818-3
Compatible with480i/480p/720p/1080i/1080p video formats Decoding: MPEG-1 Layer I and II, MPEG-2, MPEG-4 AAC, MP3
Auto and manually scan all available TV and radio channels Output mode: R/L, Coaxial, HDMI
Aspect ratio 16:9 and 4:3, 1000 channels memory, parental control Sampling frequency: 32, 44.1, 48KHz
HDMI, YPbPr, RCA, coaxial output
Teletext/ Bit Map subtitle, compliant with ETS1 Processor
Supported 7-Day EPG function, VBI Teletext CPU: Mstar MSD7816
Support 6MHz software setting Frequency: 550 MHz
Auto/Manual Program search, Multi-language supported
USB 2.0 for PVR,Timeshift, Software upgrade, Multimeida Playback(music,photo and HD video) AV Output
Demodulation: QPSK / 16QAM / 64QAM/QPSK or DQPSK;OFDM Reception Channel:: 13CH-62CH Video de-emphasis: CCIR REC.405-1, 1080p
Digital reception covers VHF & HUF band Video bandwidth: 5.5 MHz
  Video output impedance:75 Ω
Tuner Video output level: 1.0Vp-p
Input frequency: VHF 7-13 Ch(177.143MHz213.143MHz,UHF 14-69 Ch(473.143MHz803.143MHz) Audio output: Coaxial, L/R, HDMI
Input level:-90 ~ -5dBm Audio output frequency:20Hz ~ 20KHz
Bandwidth:6 MHz Audio output impedance:Low
Input impedance:75 Ω Audio output level: A 1.0Vrms ± 2dB into 10K

Channel Decoding Hardware Interface
Input frequency: VHF 7-13 Ch(177.143MHz213.143MHz,UHF 14-69  Indicators: Power, signal lock
                              Ch(473.143MHz803.143MHz) IR Receiver: 38KHz
Input level:-90 ~ -5dBm AV output: YUV, HDMI, Composite Video
Bandwidth:6 MHz RF Input: EC-type IEC169-2 Female
Input impedance:75 Ω Loop Through Out: IEC-type IEC169-24 Male
Rate: 1/2, 2/3, 3/5, 3/4, 4/5, 5/6, 8/9, and 9/10  USB: 1*USB2.0
Demultiplexer Power input Spec.: 90—260V AC 8W max
Standard: ISO/IEC13818-1, MPEG-4HE AAC
Input Max. bit stream rate: 23.420Mbps
Video Decoding Media file supported
Standard: ISO/IEC 13818-2, MPEG-2 MP@ML, H.264 Picture: JPEG,BMP,PNG
Aspect ratio: 4:3, 16:9 Music: MP3/M4A/AAC/WMA/ASF
Video format:PAL / NTSC/ AUTO Video: MKVAVIDIVXXVIDVOB
Video resolution:1080p/1080i/720p/576p/576i(PAL), MPEGMPGMP4TSTRP DAT…
                              1080p/1080i/720p/480p/480i(NTSC)
Packing  Loading
Unit (LxWxH) 168*120*38mm Giftbox (LxWxH) 208*180*50mm 1x20`GP  12000pcs
Packing  32set/Carton  Carton (LxWxH) 434*364*420mm 1x40`GP  24000pcs
Ctn G.W. 27 KGS Ctn G.W. 29 KGS 1x40`HQ 29000pcs
