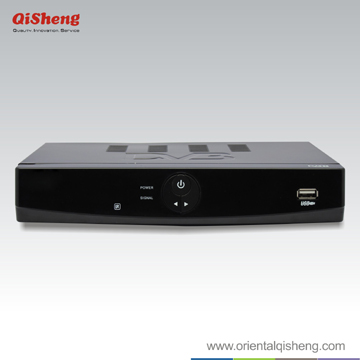

  [ DVB-2102HD ]



¡¼Mode_NO¡½DVB-2102HD
¡¼Product detail¡½

Fully SD/HD DVB-T, SD/HD MPEG2 and MPEG4 AVC H.264
Full HD, supports up to 1080P
Auto and manually scan all available TV and radio channels
Aspect ratio; 16:9 and 4:3
HDMI, RCA, coaxial output
Multi-language subtitle output supported
Powerful and highly effective 7-day EPG function
Supports teletext
Parental lock
PVR, time shift via USB 2.0
Multimedia playback and software upgrade via USB 2.0
Stores up to 1,000 programs
Tuner:<uL>
RF input frequency: <uL>
VHF: 174 to 230MHz
UHF: 474 to 860MHz</uL>
Bandwith: 7/8MHz
Input level: -83dBm
Signal input: IEC-type female
Chipset: MSTAR 7818</uL>
MPEG transport stream and A/V decoding
Video standard: MPEG-4 AVC/H.264 HP at L4
SCART video model CVBS/RGB (for Europe)
Aspect ratio: 4:3, 16:9
Video resolution: 576i, 576p, 720p and 1080i
Audio standard: ISO/IEC 14.496-3
Audio mode: mono, dual-channel, stereo
Multimedia formats:<uL>
Pictures: JPEG, BMP, PNG
Audio: MP3, WMA, AAC, ASF
Video: AVI, MKV, VOB, MP4, DAT, MPEG, MPG, MPEG</uL>
Front panel: LED indication for receiver status
Side panel: USB firmware upgrade, PVR and multimedia playback
Demodulation: QPSK, 16QAM, 64QAM
FEC: 1/2, 2/3, 3/4, 5/6, 7/8, automatic
Guard: 1/4,1/8,1/16,1/32
Mode: 2K, 8K
De-multiplexer
Standard ISO/IEC 13818-1; ARIB STB-B10
Input max. bit rate: 120Mbps/15MBps
Rear panel:<uL>
HDMI output: 576i, 576p, 720p, 1080i and 1080P
Loop through output: IEC-type, connector, single tuner
Coaxial output: RCA
Composite output: RCA
Audio output: L/R, RCA
