Product search:


  [ HD DVB-T2    ]

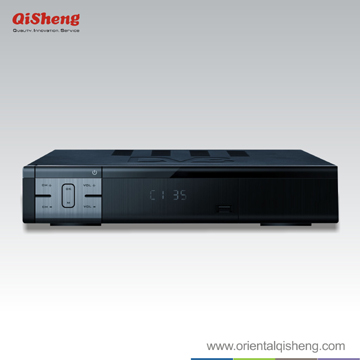

〖Mode_NO〗DVB-2015
〖Product detail〗


Main Feature Powerful Multimedia Features
Fully supports DVB-T/T2, SD/HD MPEG2/MPEG4, AVC, H.264 Photo: JPEG,BMP,PNG
HDMI for multimedia play, standard and high definition output Audio: WMAMP3AAC (.wma.mp3m4a)
Auto and manually scan all available TV and radio channels Video: MPEG1MPEG2MPEG4H264
Aspect ratio 16:9 and 4:3 Motion JPEG  (.avi.mpg.dat.vob.div.mov.mkv.mjpeg.ts.trp)
HDMI, YUV, RCA, Coaxial output Jpeg/Audio combo playback
Full HD,support up to 1080P
Multi-language subtitle output supported
Powerful and highly effective 7-day EPG function Demodulation:
Supports teletext Terrisal Receiver Standard: DVB-T2/T (EN 302755/EN 300744)
Parental lock Demodulation: QPSK, 16QAM, 64QAM, 256QAM
PVR ready function via USB 2.0,Timeshift function FEC: 1/2, 2/3, 3/4, 4/5,5/6, automatic
Multimedia playback via USB 2.0 Guard Interval: 1/4,1/8,1/16,1/32,1/128
Stores up to 1,000 programs and keeps in memory while power-off FFT Mode: 1K to 32K

Tuner Demultiplexer
IF input frequency: VHF: 174MHz - 230MHz/UHF: 474MHz - 860MHz Standard ISO/IEC 13818-1; ARIB STB-B10
Bandwith: 6/7/8MHz Input max. bit stream rate: 120Mbps (serial)/15MBps (parallel)
Input level: -83dBm
Signal input: IEC-type female

Chipset: Mstar 7816
Decoding Hardware Interface
Mpeg transport stream and A/V decoding Front Panel
Video standard: MPEG-4 AVC/H.264 HP@L4 Indicators
SCART video model CVBS/RGB (for Europe IR Receiver
Aspect ratio: 4:3, 16:9 USB: Firmware upgrade, PVR & Multimedia playback
Video resolution: 576i, 576p, 720p,1080i and 1080p LED display (Option)
Audio standard: ISO/IEC 14.496-3,, AAC, AAC+
Audio mode: mono, dual-channel, stereo Rear Panel
  HDMI 1.3: 576i, 576p, 720p and 1080i,1080P
  Loop through output: IEC-type, connector, single tuner
  Coaxial digital audio output: RCAx1
  YPbPr: RCAx3
  L/R output: RCA x2
  CVBS
  Scart output (Option)
Packing  Loading
Unit (LxWxH) 220*120*38mm Giftbox (LxWxH) 265*230*50mm 1x20`GP  6500pcs
Packing  10set/Carton  Carton (LxWxH) 485*290*280mm 1x40`GP  13000pcs
Ctn G.W. 9.4 KGS Ctn G.W. 10.05 KGS 1x40`HQ 15000pcs
