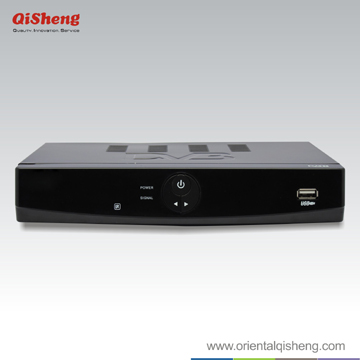

  [ HD DVB-T ]



ーMode_NO―DVB-2012
ーProduct detail―

Feature : Multimedia format:
1. Fully SD/HD DVB-T, SD/HD MPEG2 and MPEG4 AVC H.264 Pictures: JPEG, BMP, PNG
2. Full HD, support up to 1080P Audio: MP3, WMA, AAC, ASF
3. Auto and manually scan all available TV and radio channels Video: AVI, MKV, VOB, MP4, DAT, MPEG, MPG, MPEG
4. Aspect ratio 16:9 and 4:3
5. HDMI, RCA, coaxial output Front panel:
6. Multi-language subtitle output supported LED indication for receiver status
7. Powerful and highly effective 7-day EPG function
8. Supports teletext Side panel:
9. Parental lock USB firmware upgrade, PVR and multimedia playback
10. PVR, timeshift via USB 2.0
11. Multimedia playback and software upgrade via USB 2.0
12. Stores up to 1,000 programs
Tuner: Demodulation: QPSK, 16QAM, 64QAM
RF input frequency: VHF: 174MHz - 230MHz/UHF: 474MHz - 860MHz FEC: 1/2, 2/3, 3/4, 5/6, 7/8, automatic
Bandwith: 7/8MHz Guard: 1/4,1/8,1/16,1/32
Input level: -83dBm Mode: 2K, 8K
Signal input: IEC-type female Demultiplexer
Chipset: MSTAR 7818 Standard ISO/IEC 13818-1; ARIB STB-B10
  Input max. bit rate: 120Mbps/15MBps
Mpeg transport stream and A/V decoding Rear panel:
Video standard: MPEG-4 AVC/H.264 HP@L4 HDMI output: 576i, 576p, 720p, 1080i and 1080P
SCART video model CVBS/RGB (for Europe Loop through output: IEC-type, connector, single tuner
Aspect ratio: 4:3, 16:9 Coaxial output: RCA
Video resolution: 576i, 576p, 720p and 1080i Composite output: RCA
Audio standard: ISO/IEC 14.496-3 Audio output: L/R, RCA
Audio mode: mono, dual-channel, stereo
Packing  Loading
Unit (LxWxH) 220*120*38mm Giftbox (LxWxH) 265*230*50mm 1x20`GP  6500pcs
Packing  10set/Carton  Carton (LxWxH) 485*290*280mm 1x40`GP  13000pcs
Ctn G.W. 9.4 KGS Ctn G.W. 10.05 KGS 1x40`HQ 15000pcs
